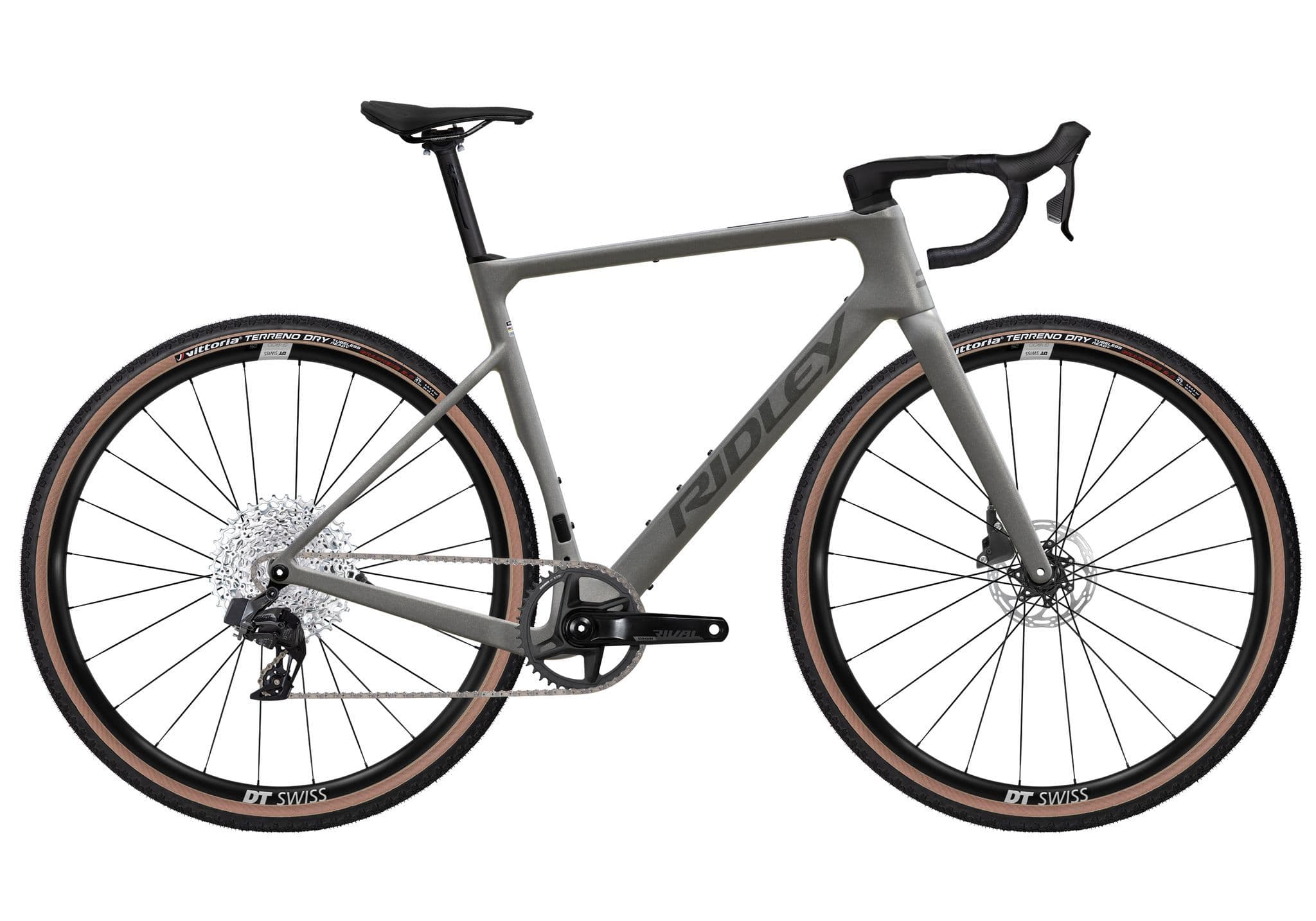

ASTR Gravel Bike: Performance and Versatility

The ASTR brings Ridley’s renowned race-ready gravel performance to a wider audience, blending the same advanced aerodynamics and modern geometry as the ASTR RS in an accessible package. Built for high-speed gravel rides and races across varied terrains, the ASTR offers premium design and features for ambitious riders.

Key Features

• Aerodynamic Design: Engineered for speed, the ASTR’s frame and fork feature aero-optimized tubing inspired by top-performing race bikes, reducing drag while keeping you efficiently powered on every ride.

• Performance-Driven Geometry: The ASTR’s modern geometry is tailored for stability and responsive handling at high speeds. With a 71.5-degree head tube angle for quick steering and a 74-degree seat tube angle to enhance climbing power and energy transfer, this bike is ready for any challenge on rough terrain.

• Tire Clearance and Grip: Designed for adaptability, the ASTR accommodates tires up to 52mm (1x drivetrain) or 47mm (2x drivetrain), allowing you to switch between setups based on terrain and race needs. Wider tire options add traction and comfort, making the ASTR capable on both smooth gravel and technical trails.

• Optimized Stability and Control: Short chainstays keep the ASTR feeling lively and responsive, while a slightly lower bottom bracket enhances stability on faster sections. The lowered stack height provides a more aerodynamic riding position, giving racers an edge without sacrificing control.

With the ASTR, Ridley is dedicated to providing the perfect gravel bike for both dedicated pros and passionate enthusiasts. Built to perform on diverse terrains with race-oriented features, the ASTR is ready to take on the gravel world.

Key Specifications:

• Range: Gravel
• Frame: ASTR, HM carbon, BB86, TA12x142
• Fork: ASTR, TA 12x100, Integrated fork crown diffuser; 50mm rake, D-Shape steerer
• Material: Carbon

Groupset:

• Type: SRAM Rival AXS XPLR 1x12-speed
• Crankset: SRAM RIVAL1 // 172mm // 42T chainring
• Cassette: SRAM XPLR XG-1251 // 12-speed // 10-44T
• Rear Derailleur: SRAM Rival eTap AXS XPLR // 12-speed
• Brakes: Flat Mount disc brakes

Cockpit:

• Handlebar: Forza Cirrus Pro Integrated Flared
  • Width: 380mm (center-to-center at shifters) / 445mm (center-to-center at drops)
  • Flare: 16°
  • Drop: 120mm
  • Reach: 70mm
• Seatpost: 4ZA Cirrus // 27.2mm // 400mm length // Zero offset
• Saddle: Selle Italia Novus Boost Superflow // Manganese rails

Wheels and Tires:

• Front and Rear Wheels: DT Swiss G1800 Spline
  • Tubeless Ready
  • TA 12x100mm (front) / TA 12x142mm (rear)
  • Depth: 25mm // Internal width: 24mm
• Tires: Vittoria Terreno Dry TLR
  • 700x47c
  • Folding-TLR // Tan Wall

Additional Details:

• Max Tire Clearance (700c):
  • 52mm (1x drivetrain)
  • 47mm (2x drivetrain)
• Pedals: Not included
• Electric Bike: No

Aesthetics:

• Primary Color: Empress Grey Metallic (465)
• Secondary Colors: Anthracite Metallic (11)
• Finish: Matte
• Sex: Unisex (Men/Women)

If you're interested in purchasing the Ridley Astr Gravel Bike (AST02Bm), Mule offers the convenience of personal delivery. This service ensures that your bike arrives securely and ready for assembly or immediate use.

For more information on personal delivery options, including availability, pricing, and scheduling, please contact Muledirectly. They'll be happy to provide all the details and assist you with your order. 🚴‍♀️
