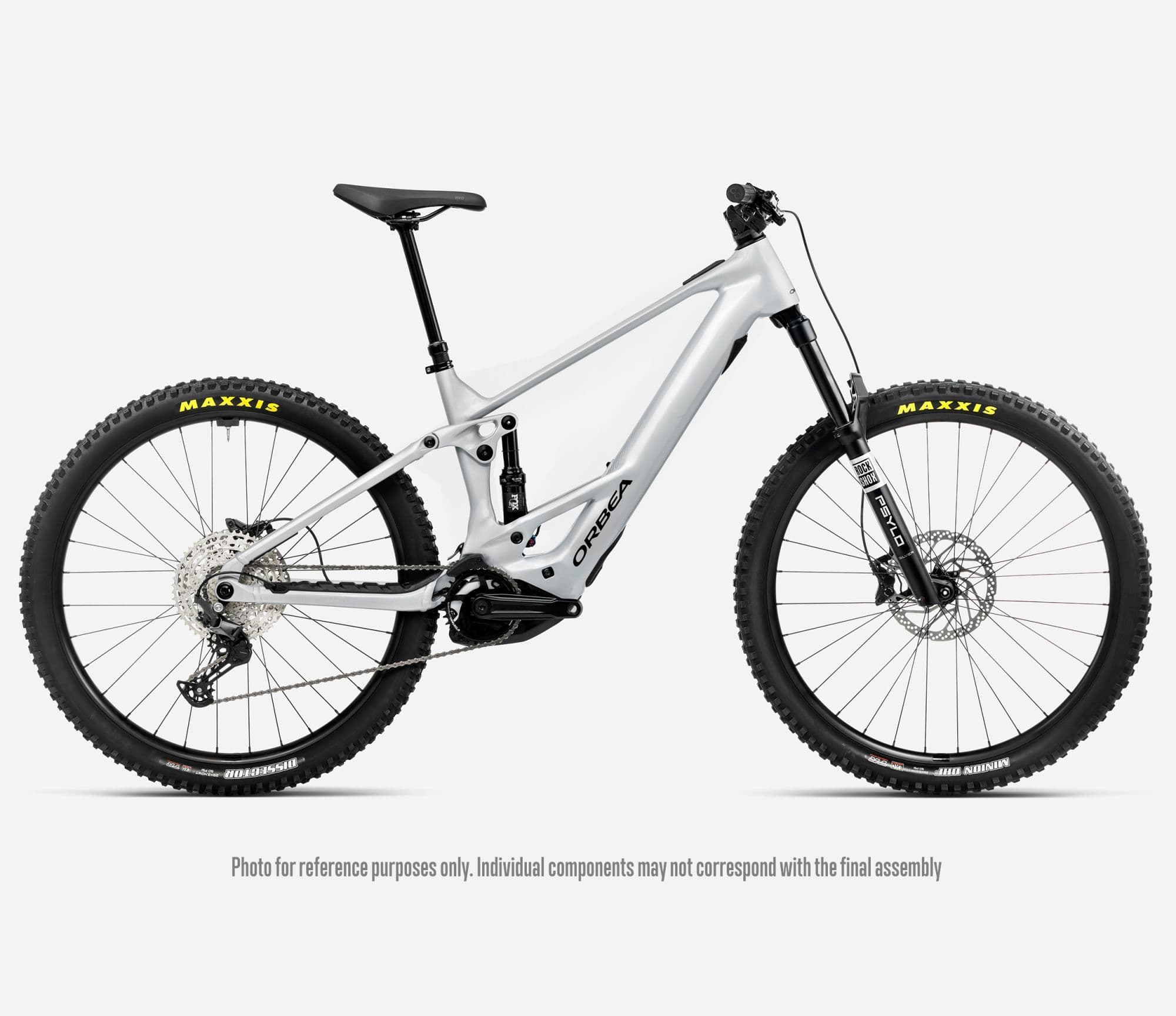

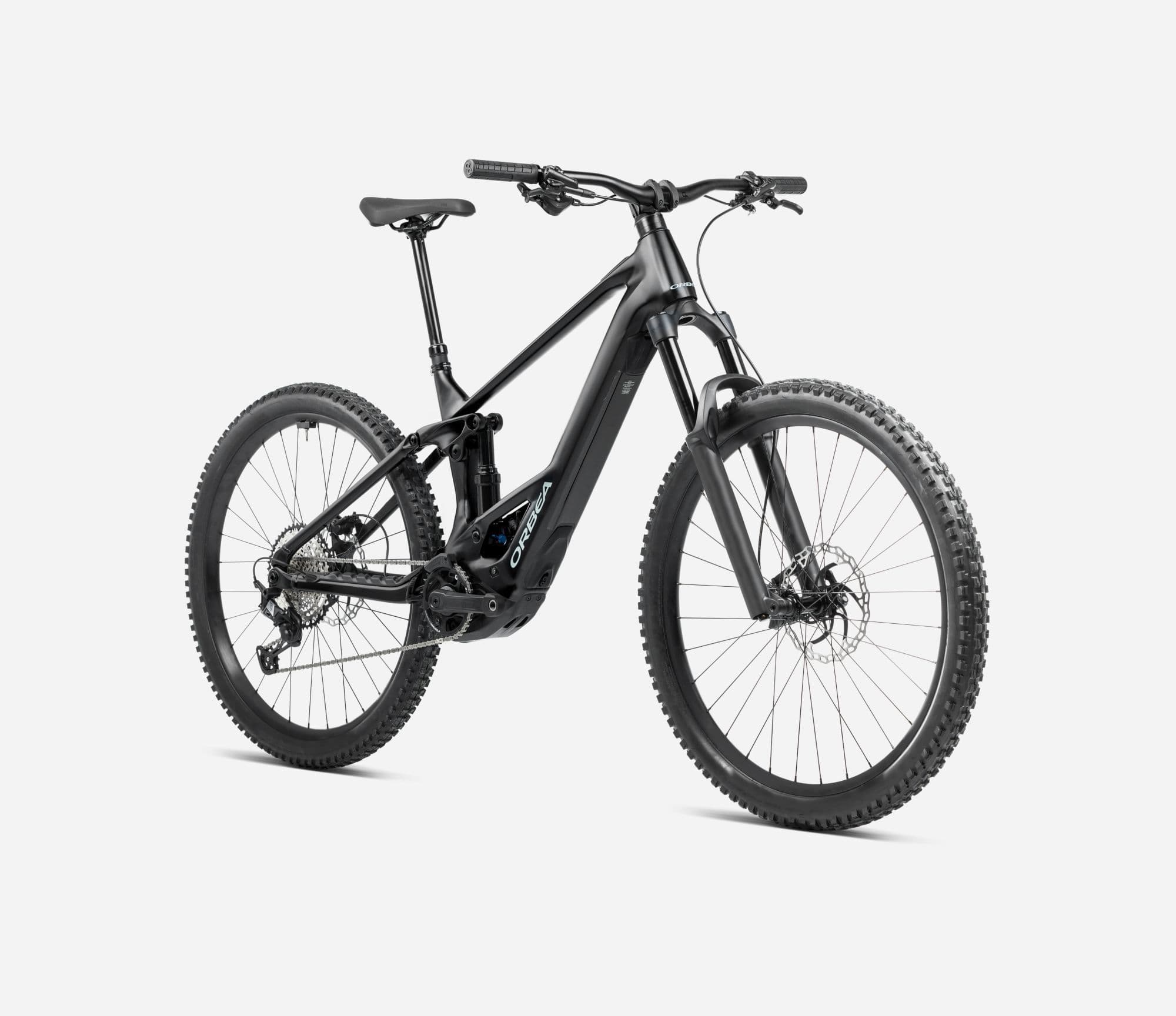

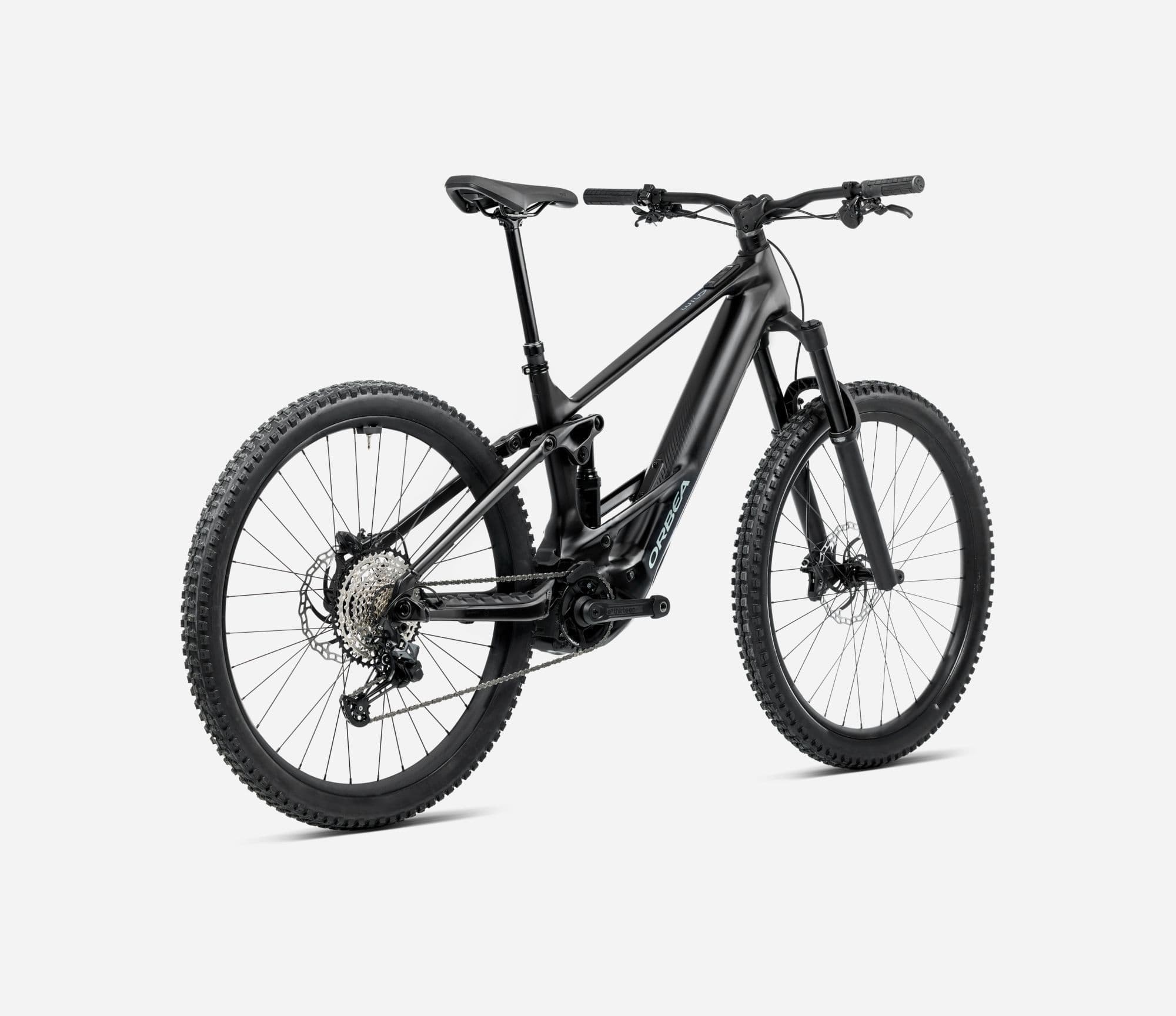

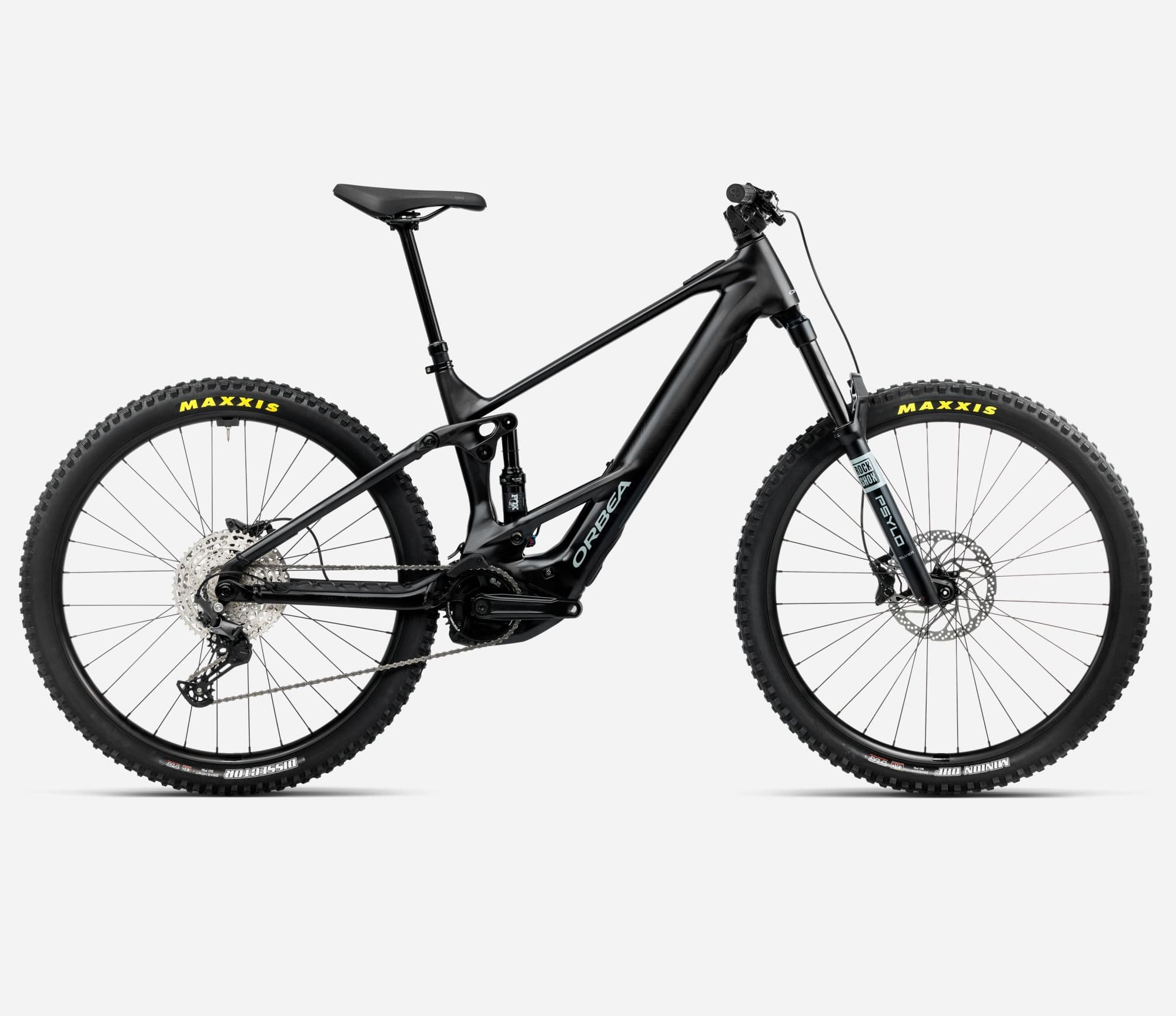

Orbea Wild H30 2026

Conquer the trail with confidence. The Orbea Wild H30 is a powerful alloy full-suspension e-MTB built to take on demanding terrain with ease. Powered by Bosch’s proven Performance Line CX motor and backed by a 600Wh battery, this bike is made for big days out, steep climbs, and fast descents. With progressive geometry, high-end components, and rugged 29" wheels, the Wild H30 brings performance and fun to every ride.

Frameset

• Frame: Orbea Wild Hydro aluminum, 29" wheels, Concentric Boost 12x148mm

• Shock: Fox Float Performance Trunnion, 205x57.5mm, 2-Position Evol LV, custom-tuned

• Fork: RockShox Psylo Silver RC, 15x110 Boost

• Steerer: Alloy 1-1/2" with black oxidated bearing

eBike System

• Battery: Bosch Powertube 600Wh (horizontal mount)

• Motor: Bosch Performance Line CX Gen4

• Display: Bosch System Controller BRC3100

• Remote: Bosch Mini Remote BRC3300

• Charger: Bosch 2A (220–240V)

• Range Extender: Not included

Drivetrain

• Crankset: Prowheel EB17 alloy with 32T steel chainring

• Rear Derailleur: Shimano Deore M6100 SGS Shadow Plus

• Shifters: Shimano Deore M6100 I-Spec EV

• Cassette: Shimano CS-M6100, 10–51T, 12-speed

• Chain: Shimano M6100

• Chainguide: e*thirteen Plus, Bosch CX Gen4, compatible with 32–36T rings

Cockpit

• Handlebar: OC Mountain Control MC30, 800mm width, 20mm rise

• Stem: OC Mountain Control MC20, 0°

• Computer Mount: OC CM-05, compatible with Garmin and Sigma devices

• Grips: OC Lock-On

Brakes

• Brakeset: Shimano MT420 hydraulic disc brakes

• Rotors: 203mm Shimano SMRT30 front & rear

Wheels & Tyres

• Wheels: 29" alloy, tubeless-ready, 29c, 32H

• Front Tyre: Maxxis Minion DHF 2.50", 60TPI, EXO/TR

• Rear Tyre: Maxxis Dissector 2.40", 60TPI, EXO/TR

Components

• Seatpost: OC Mountain Control MC22 dropper, 31.6mm

• Dropper Lever: Shimano SL-MT500 I-Spec EV

• Saddle: Selle Royal Vivo Sport Men, 145 x 269mm

Free personal delivery within 100 miles of MULE
