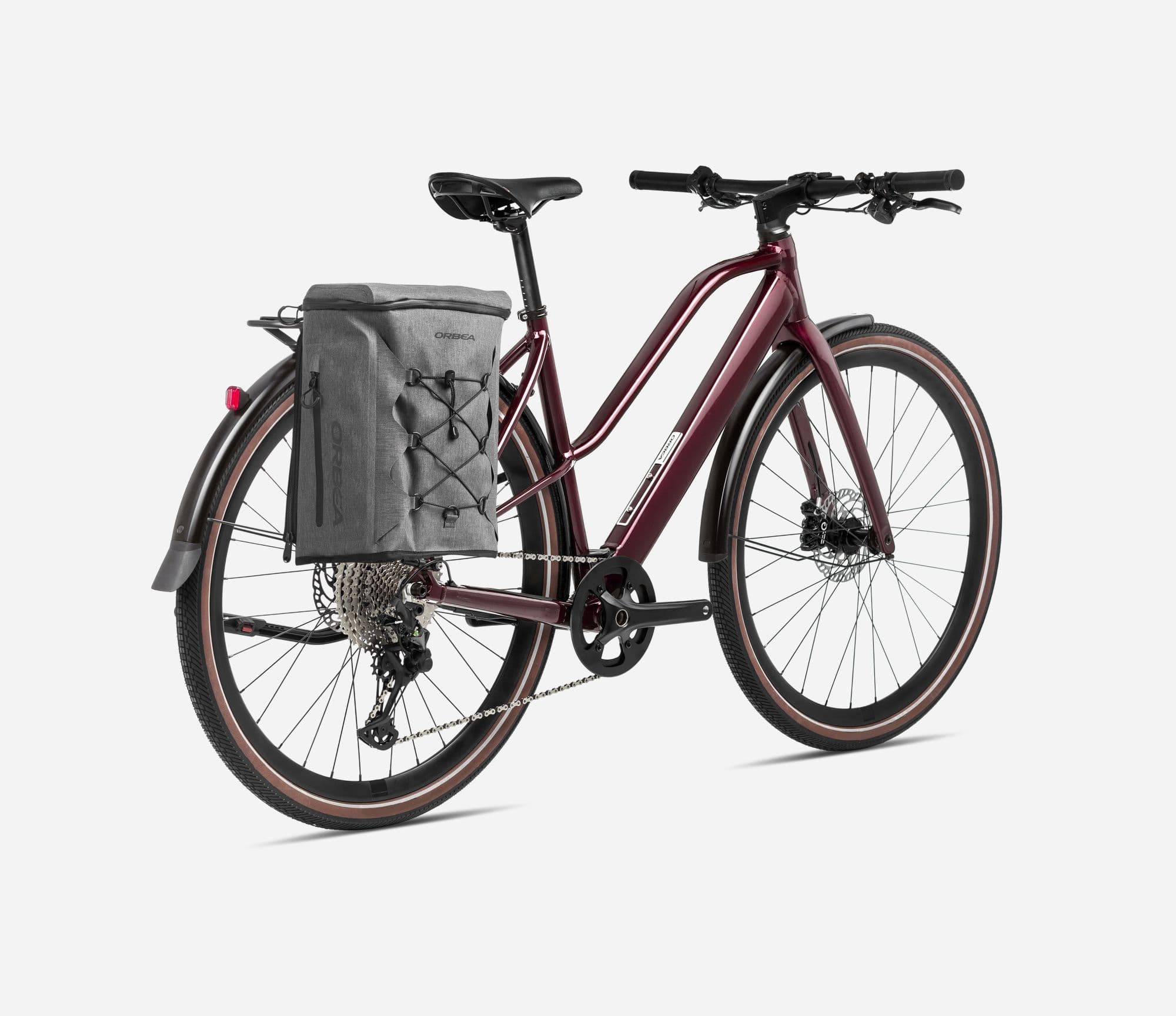

Orbea Vibe H10 EQ

A little lighter

THE 2024 ORBEA VIBE H10

We would recommend these bikes for those want a light-weight bike that rides, looks and feels like a normal bike

• These bike are for those who want to turn the power on as and when they need it.
• These bikes will roll well on the road and gravel tracks.
• The power will assist you up to the e-bike speed limit, then you can easily pedal them past that speed if you want to.
• Most eBikes are difficult to pedal with the power off and are difficulty to pass the 15.5mph speed restriction. Not these ones.

Delivery

We can delivery this bike for Free. If you live within 50 miles of MULE, the bike will be built by our mechanic and brought to you ready to ride.

URBAN LIGHTNESS

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

Frame and Fork

• Frame: Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum (2021), ICR cable routing, forged BB, 135x9 QR, flat mount disc, accommodates up to 700x45 tires, 1-1/2" semi headset, 41x86.5 Pressfit BB, compatible with carrier and fenders.
• Fork: Orbea Vibe carbon fork, full carbon, 1-1/2", accommodates up to 700x45 tires, flat mount disc, thru axle 12x100mm, compatible with long mudguards.

Headset

• Headset: Acros Alloy 1-1/2" with internal cable routing.

eBike System

• Battery: Mahle 36V/6.9A 248Wh ANT+.
• Range Extender: Not available.
• Motor: Mahle motor hub X35 Plus.
• Display: Not available.
• Charger: Mahle X35.
• Remote: Mahle iWoc TRIO.

Drivetrain

• Crankset: CR 0.1, forged alloy, 42t with chainguard.
• Shifters: Shimano Deore M6100.
• Cassette: Sun Race CSMZ80 11-51t 12-speed metallic e-bike cassette.
• Rear Derailleur: Shimano XT M8100 SGS Shadow Plus.
• Chain: KMC X12.

Cockpit

• Handlebar: Alloy, 31.8mm diameter, 12mm rise, 700mm width.
• Stem: Alloy forged, -6º, ICR.

Brakes

• Brakes: Magura MT5 E-STOP hydraulic disc brakes with easy route connection.

Wheels

• Wheels: Alloy, tubeless, 700c, 21c, 32H.
• Tyres: Kenda K1052 700x45C, reflective type, TLR.
• Front Wheel Axle: Orbea thru axle 12x100mm, M12x2 P1 hollow.

Accessories

• Pedals: VP-537 Black.
• Rear Carrier: Orbea Vibe rear luggage carrier (Max: 15Kg).
• Carrier Accessories: Orbea carrier side bag, backpack convertible with inner computer bag, 15L, waterproof, reflective.
• Mudguard: Curana Apollo 55mm.
• Front Position Light: On head tube, COB LED, On/Off, 60 lumens, ECE50.
• Front Light: Lezyne Ebike Power STVZO Pro E115 inverted position with remote, 310 lumens.
• Rear Light: Lezyne Fender STVZO.
• Kickstand: Massload rear.
• Bell: Knog OI Classic.

Components

• Seatpost: Alloy, 27.2mm, 20mm setback.
• Saddle: Brooks Cambium C15, 283x140.
• Grips: Brooks Comfort Cambium 130mm
