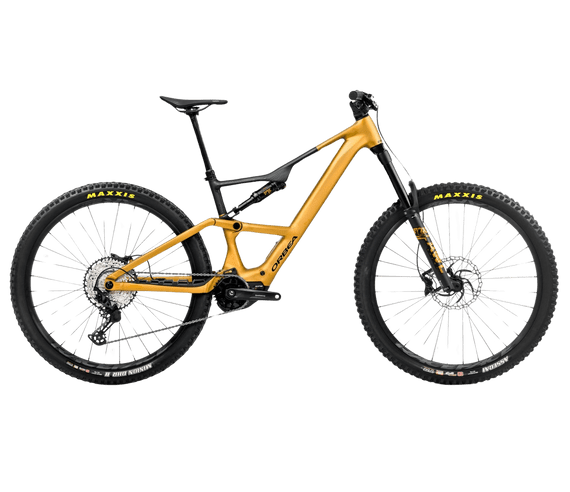

Rise LT H20: Your Best Ride Yet

The Trail Shredder’s eMTB
The Rise LT delivers 160mm front and 150mm rear travel, paired with progressive trail geometry for unmatched control and fun. Feel the dirt, push hard, and stay connected—this is the ultimate trail experience.

Less E, More Bike

Rediscover your favorite trails with the Rise LT H20. Combining lightweight design, natural assistance, and refined handling, it’s everything you love about riding—now amplified.

• Lightweight Construction: Thanks to meticulous design, asymmetrical frame construction, and the SBS battery system.
• Next-Gen Firmware: Configure motor output up to 85Nm for peak performance.
• Extended Range: Up to 840Wh battery capacity keeps you riding longer without worry.

Frame & Suspension

• Frame: Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
• Shock: Fox Float Performance 2-Pos Evol LV, custom tune (210x55mm)
• Fork: Fox 36 Float AWL HD Sport 160, Rail QR15x110

eBike System

• Battery: Orbea Internal 630Wh
• Motor: Shimano EP600 RS Gen2 MC (Configurable to 85Nm)
• Charger: Orbea 2nd Gen eBike Smart Charger (42V/2-4A)
• Remote: EN600-L

Drivetrain

• Chainring: ethirteen Helix Core espec Direct Mount 32T
• Crank: Shimano Steps EM600
• Shifters: Shimano Deore M6100 I-Spec EV
• Cassette: Shimano CS-M7100 10-51t (12-Speed)
• Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus
• Chain: Shimano M6100
• Chainguide: Orbea eBike Chainguide

Cockpit

• Handlebar: OC Mountain Control MC31, Rise 20mm, Width 800mm
• Stem: OC Mountain Control MC20, 0º
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma compatible)

Brakes

• System: Shimano MT420 Hydraulic Disc
• Rotors: Galfer Wave Rotors (203mm front / 180mm rear)

Wheels & Tyres

• Wheels: Race Face AR 30c, Tubeless Ready
• Front Tyre: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Rear Tyre: Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR

Components

• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Saddle: Fizik Terra Ridon X5 145mm
• Grips: OC Lock On
