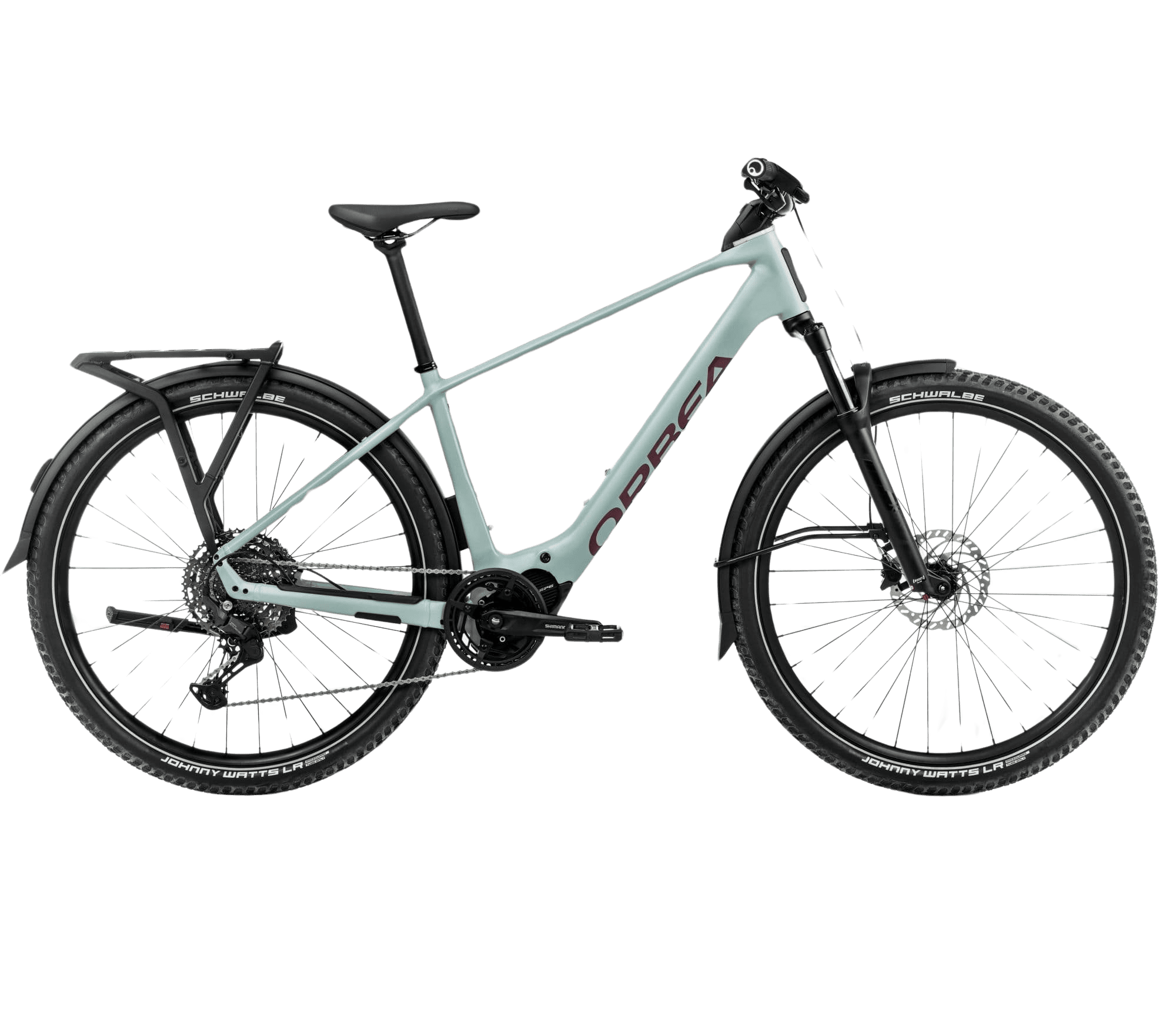

Orbea Kemen ADV - Adventure Redefined

At MULE Cycles, we don't just deliver bikes; we hand-deliver your adventure. Our team personally brings your bike to your door, provides full usage instructions, and ensures you're ready to ride. With the Orbea Kemen ADV, you're equipped for anything, whether you're cutting through city streets or exploring rugged hills.

The Kemen ADV is powered by a robust Shimano EP600 motor paired with a 630Wh battery, opening up endless possibilities for your journeys. With a wide range of accessories, it’s easy to configure the Kemen for whatever your day demands.

Frameset:

• Frame: Orbea Kemen Top Bar with integrated Shimano Steps system, hydroformed Alloy 6061 series with internal cable routing, Boost 148x12, carrier and kickstand compatible.
• Fork: SR Suntour XCR34 100mm Air Q15x110.
• Headset: FSA 1-1/2" Integrated Aluminium Cup.

E-Bike:

• Battery: Orbea Internal 630Wh for long-lasting power.
• Motor: Shimano EP600, providing strong and reliable assistance.
• Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A.
• Remote: EN600-L for easy control.

Drivetrain:

• Chainring: Alloy 40t with chainguard.
• Crank: Shimano Steps EM600.
• Shifters: Shimano Cues SL-U6000 for smooth gear changes.
• Cassette: Shimano CS-LG400 11-50t 11-Speed for versatile riding.
• Rear Derailleur: Shimano Cues U6000 GS Shadow.
• Chain: KMC eGlide.

Cockpit:

• Handlebar: Orbea Urban with integrated light, Rise 50, Width 760mm.

Brakes:

• Brakes: Magura AT2 Hydraulic Disc with Easy Route Connection for reliable stopping power.

Wheels:

• Wheels: 29" alloy, tubeless-ready, 32H.
• Tyres: Schwalbe Johnny Watts LR, 60-622 with reflective tape for enhanced visibility.

Accessories:

• Pedals: VP-537 Black.
• Rear Carrier: Orbea RR-02 Alloy, compatible with MIK HD, MIK Side, and Ortlieb QL3.1 system, max load 30kg.
• Mudguard: Curana Apollo Orbit 70mm for full coverage.
• Front Position Light: Orbea integrated with USB-C charging point.
• Front Light: Supernova Starstream Pure, Low Beam for clear vision.
• Rear Light: Supernova TL3 Z for added safety.
• Quick Stand: Massload rear adjustable kickstand for easy parking.

Components:

• Seatpost: Alloy, 31.6mm, 0 setback.
• Saddle: Selle Royal Vivo Ergo for comfort on long rides.

Intelligent Lighting System: Every Kemen comes with a built-in, high-tech lighting system that automatically switches on, ensuring your safety and lighting your path.

630Wh Battery: The integrated 630Wh battery uses advanced cell technology to deliver more power in a compact design, keeping you going longer.

Telescopic Seatpost: The telescopic seatpost makes mounting and dismounting effortless, even when the bike is fully loaded.

With MULE Cycles and the Orbea Kemen ADV, you’re ready to tackle any adventure with confidence.
