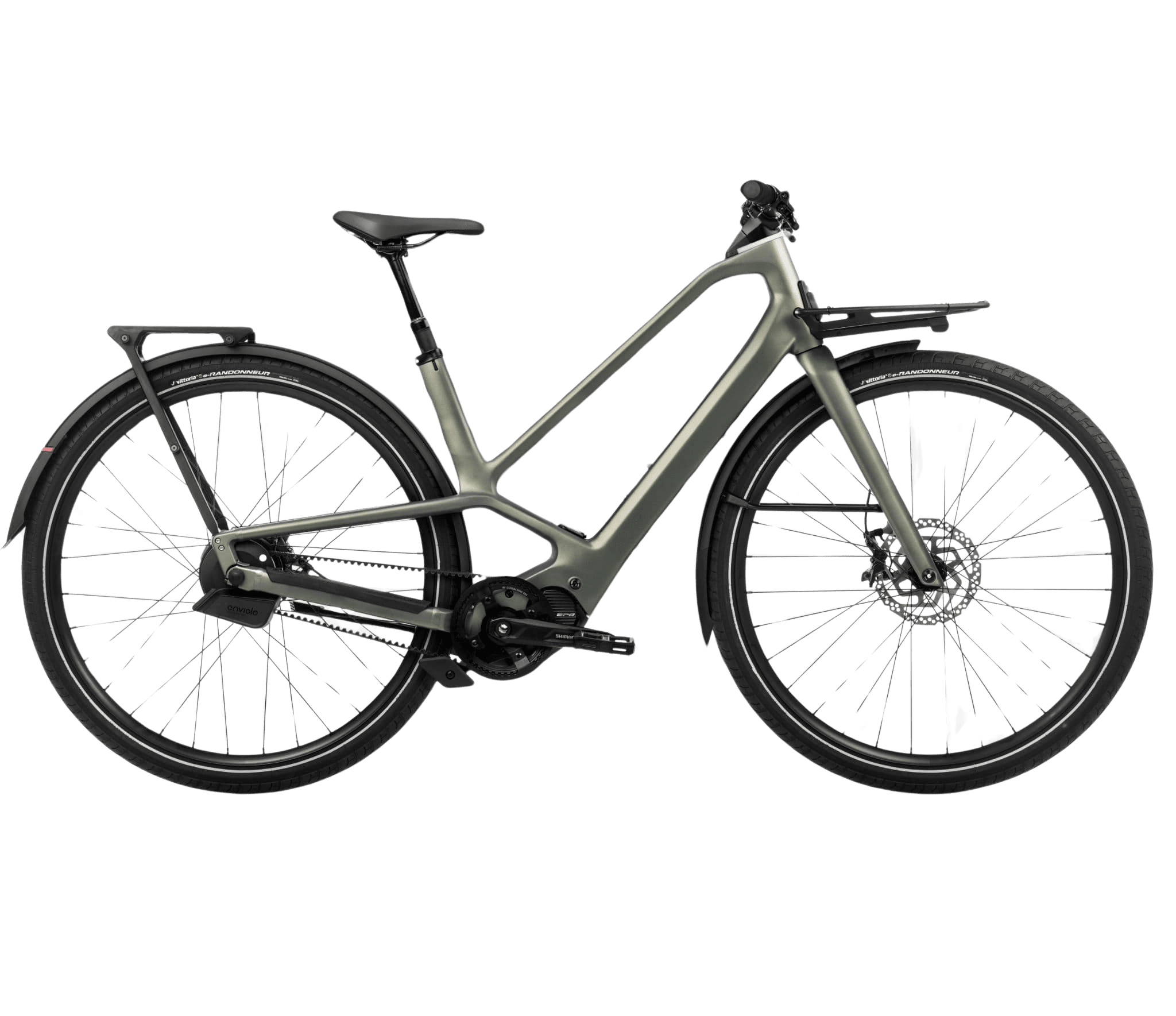

Orbea Diem 10

FREE Delivery available.

Contact us to ask about personal delivery and set up at your home.

Diem 10, the powerful urban ebike, slots into your routine, making the A to B even easier thanks to Enviolo´s maintenance free, automatic shifting and belt drive.

ENDLESS POWER. INTELLIGENT CONTROL

The Shimano EP motor matched with our 630Wh battery makes the steepest streets and heaviest loads a breeze.

INTELLIGENT LIGHTING SYSTEM

The high-tech lighting system switches on automatically to keep you safe and light the way ahead. The wrap around lights make sure you are always visible, day or night, even from the side.

AUTOMATIC SHIFTING

The Enviolo hub offers continous gearing, so that you are always in the perfect gear. The sealed hub, and Gates belt drive system, runs smoothly with no maintenance and no noise.

FRAMESET

• FRAME: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible
• FORK: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
• HEADSET: FSA 1-1/2" Integrated Aluminium Cup

EBIKE

• BATTERY: Orbea Internal 630Wh (Optional 250 Wh Range Extender)
• RANGE EXTENDER: N/A
• MOTOR: Shimano EP801
• CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
• REMOTE: EN600-L

DRIVETRAIN

• CHAINRING: Gates CDX 46t w/chainguard
• CRANK: Shimano Steps EM600
• CASSETTE: Gates CDX 34t for Enviolo
• REAR DERAILLEUR: Enviolo Automatiq, BT
• CHAIN: Gates CDX Belt

COCKPIT

• HANDLEBAR: Orbea Urban, Integrated Light, Rise 0, Width 720

BRAKES

• BRAKES: Shimano Cues U8020 Hydraulic Disc
• BRAKES CONFIGURATION:

WHEELS

• WHEELS: Alloy, Tubeless, 25c, 32H
• TYRES: Vittoria e-Randonneur 50-622, Reflective band

ACCESSORIES

• PEDALS: VP-537 Black
• FRONT CARRIER: Orbea RF-01 Alloy, Max. 10Kg wtih Aluminium Front Basket with net
• REAR CARRIER: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
• MUDGUARD: Curana Apollo Orbit 60mm
• FRONT POSITION LIGHT: Orbea integrated, USB-C charging point
• FRONT LIGHT: Supernova Starstream Pro, High Beam
• REAR LIGHT: Orbea Fender integrated, with alert light
• CHAINGUARD: Gates CDS
• QUICK STAND: Orbea Diem Integrated
• BELL: Knog OI Classic

COMPONENTS

• SEATPOST: OC Mountain Control MC21, 31.6mm, Dropper
• SEATPOST LEVER: Shimano SL-MT500
• SADDLE: Selle Royal Vivo Ergo
