Small only
-

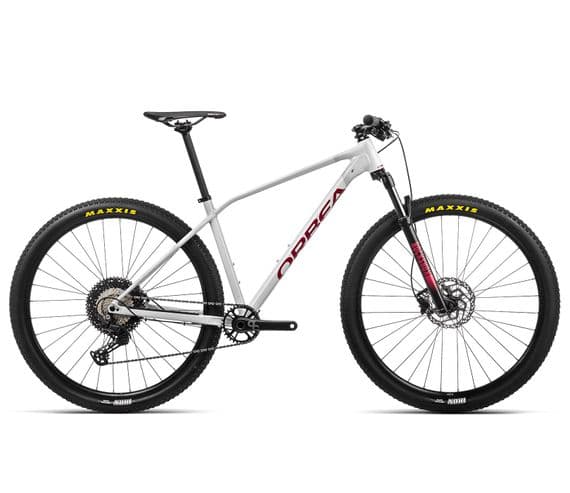

FRAME Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing.
-
FORK RockShox Judy Silver TK Crown adjust QR Solo Air 100
-
CRANKSET OC1 Alloy forged Boost 32t
-
HEADSET FSA 1-1/8 - 1-1/2" Integrated
-
HANDLEBAR OC1 Flat 31.8mm 740mm
-
STEM Alloy 31.8mm interface 7º
-
SHIFTERS Shimano Deore M6100
-
BRAKES Shimano MT201 Hydraulic Disc
-
CASSETTE Sun Race 11-51t 12-Speed
-
REAR DERAILLEUR Shimano Deore M6100 SGS Shadow Plus
-
CHAIN KMC X12
-
WHEELS Mach1 Klixx 23c Tubeless Ready
-
TYRES Maxxis Ikon 2.20" FB 60 TPI Dual
-
SEATPOST Alloy 27.2 Offset 0
-
SADDLE Fortune QF-3091
GEOMETRY AND ERGONOMICS
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 - SEAT TUBE (C-T) | 400 | 445 | 483 | 533 |
| 2 - TOP TUBE (EFF) | 562 | 596 | 620 | 650 |
| 3 - HEAD TUBE | 100 | 110 | 120 | 135 |
| 4 - CHAINSTAY | 435 | |||
| 5 - BB HEIGHT | 309 | |||
| 6 - BB DROP | 61 | |||
| 7 - WHEELBASE | 1092 | 1127 | 1152 | 1184 |
| 8 - HEAD ANGLE | 68º | |||
| 9 - SEAT ANGLE | 74,5 | |||
| 10 - STANDOVER | 721 | 735 | 791 | 829 |
| 11 - REACH | 395 | 426 | 448 | 474 |
| 12 - STACK | 602 | 612 | 621 | 635 |
| 13 - FORK LENGTH | 501,6 | |||
| 14 - RAKE | 44 | |||
| SIZE | CRANK | STEM | HANDLEBAR |
|---|---|---|---|
| S | 170 | 70 | 740 |
| M | 175 | 70 | 740 |
| L | 175 | 90 | 740 |
| XL | 175 | 100 | 740 |
| Brand: | Orbea |
